Features:
UNS Number N06601 Inconel 601 has a good resistance to heat and corrosion, especially the oxidation insistance at elevated temperatures up to 1200℃. It also has high strength, good fabricability and good resistance to aqueous corrosion.
Applications: Inconel 601 is applied in Chemical process industry, waste incinerators, power generation equipment, heat treating equipment, and gas turbine engine components.
Forms of Inconel 601 available at China Special Bolts • Sheet
• Plate
• Bar

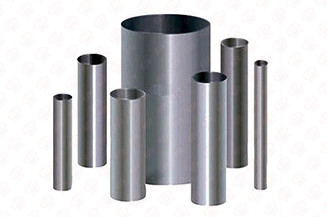

• Pipe & Tube (welded & seamless)

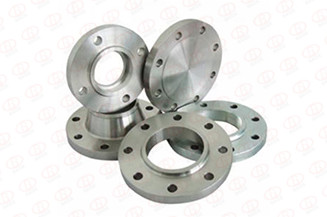

• Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
• Wire
Inconel 601 Chemaical composition: | Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | Al | P | S |
| 601 | Min. | 58 | 21 |
|
|
|
|
| 1.0 |
|
|
| Max. | 63 | 25 | balance | 0.1 | 1.5 | 0.5 | 1 | 1.7 | 0.02 | 0.015 |
Inconel 601 Physical properties: | Density | 8.1g/cm³ |
| Melting point | 1320-1370℃ |
Inconel 601 Alloy m inimum mechanical properties in the room temperature: | Alloy state | Tensile strength
Rm N/mm² | Yield strength R P0. 2N/mm² | Elongation A 5 % | Brinell hardness HB |
| Annealing treatment | 650 | 300 | 30 | - |
| Solution treatment | 600 | 240 | 30 | ≤220 |
ASTM Specifications | Pipe Smls | Pipe Welded | Tube Smls | Sheet/Plate | Bar | Forging | Fitting | Wire |
| B167 | B517 | B167 | B168 | B166 | B564 | B366 | B166 |
